Biometric

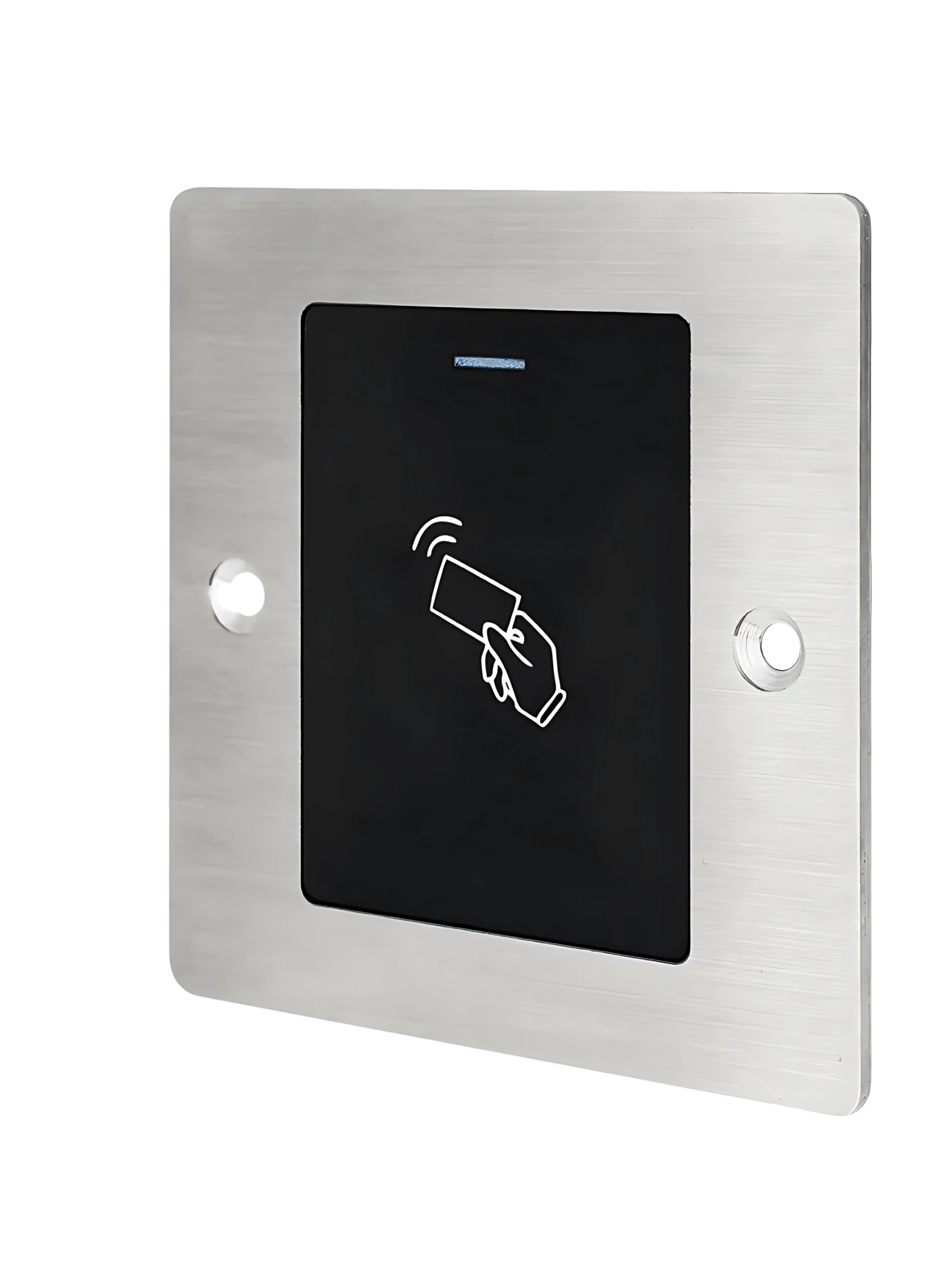

XAC-113S

Embedded RFID access control for outdoor use
IP66 waterproof and weatherproof design
Operates in -40°C to 60°C temperature range
Supports 125KHz EM & 13.56MHz Mifare cards
Holds up to 2,000 users
Anti-tamper with built-in LDR sensor
Stainless steel faceplate (brushed finish)
Wiegand 26/34 input & 26-bit output supported
Relay output (NO/NC/COM) with adjustable timer
Compact size: 86 × 86 × 25 mm
Low power usage (<50mA idle current)
Ideal for gates, doors, and harsh environments

inquiry now

The Embedded RFID Access is a robust access control solution designed for environments requiring high durability and advanced security features. Its waterproof and tamper-resistant design makes it ideal for harsh conditions while offering flexible card compatibility and operational modes. The device integrates seamlessly with modern security systems to enhance access control efficiency.

Attribute	Value
Model	XAC-113S
Access Method	RFID (125KHz EM & 13.56MHz Mifare)
Read Range	0–6 cm
User Capacity	2,000 cards
Operation Modes	Pulse / Toggle
Relay Output	NO/NC/Common (0–99 sec adjustable)
Wiegand Support	26-bit output / 26/34-bit input
Waterproof Rating	IP66
Anti-Tamper	Yes (Built-in LDR)
Power Supply	12–18V DC
Idle Current	<50mA
Operating Temp	-40°C to 60°C
Dimensions	86 × 86 × 25 mm
Material	Brushed Stainless Steel Plate
Applications	Gates, parking, buildings, institutions

Data Sheet

Last updated: 18 Apr 2025 Download
