XR-815

  • Long-range UHF RFID reader with up to 15 meters reading distance
  • Supports passive UHF tags (no battery required)
  • Built-in 9 dBi antenna with fast reading (up to 100 tags/sec)
  • Weatherproof IP66 housing for outdoor durability
  • Multi-tag reading with anti-collision technology
  • Compatible with Wiegand 26/34, RS232, RS485 (optional TCP/IP, WiFi, GPRS)
  • Tamper detection for added security
  • Plug-and-play installation for easy upgrades
  • Ideal for parking management, gated communities, and commercial access control

  • Description
  • Specifications
  • Download
  • Videos

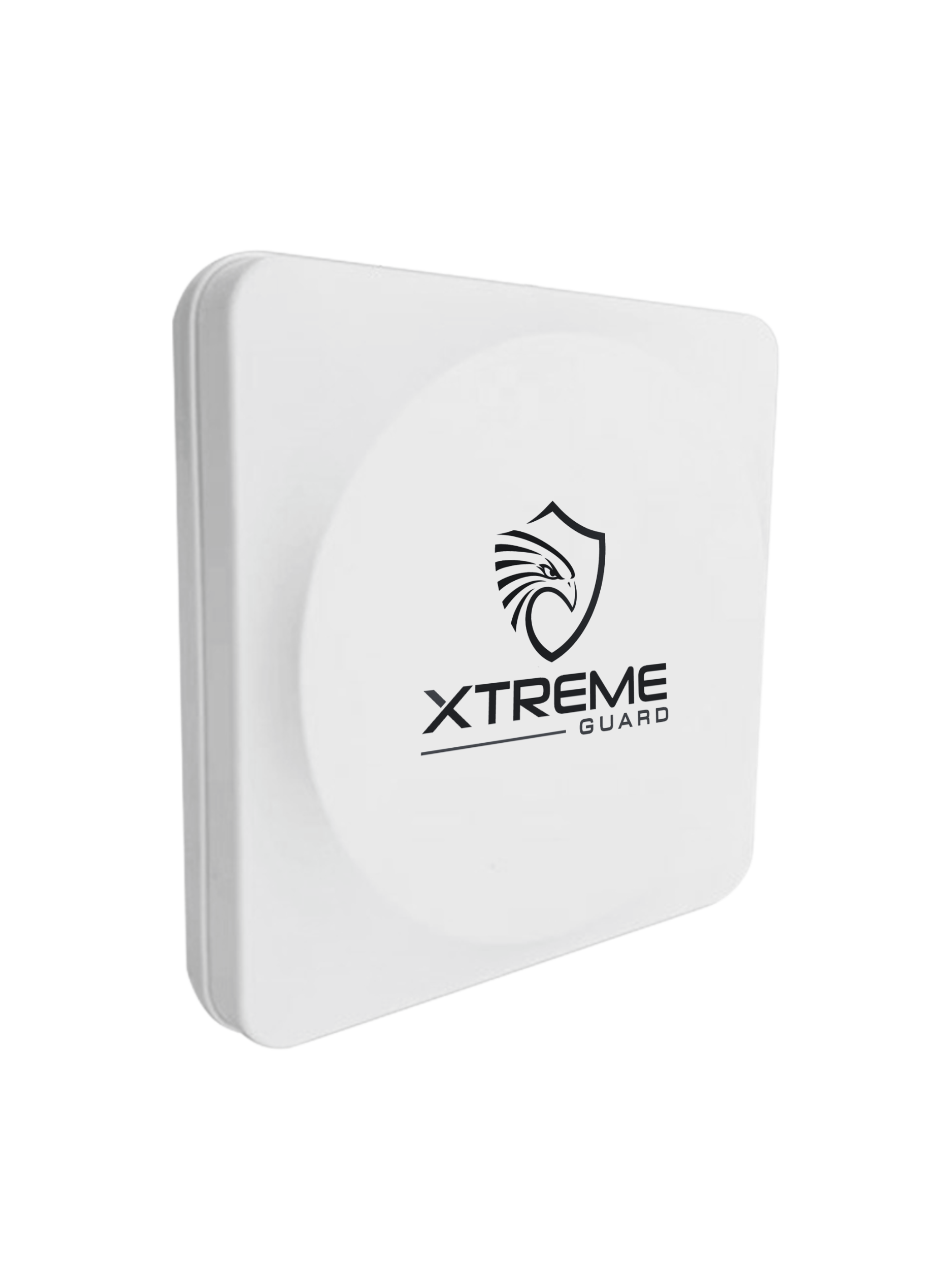

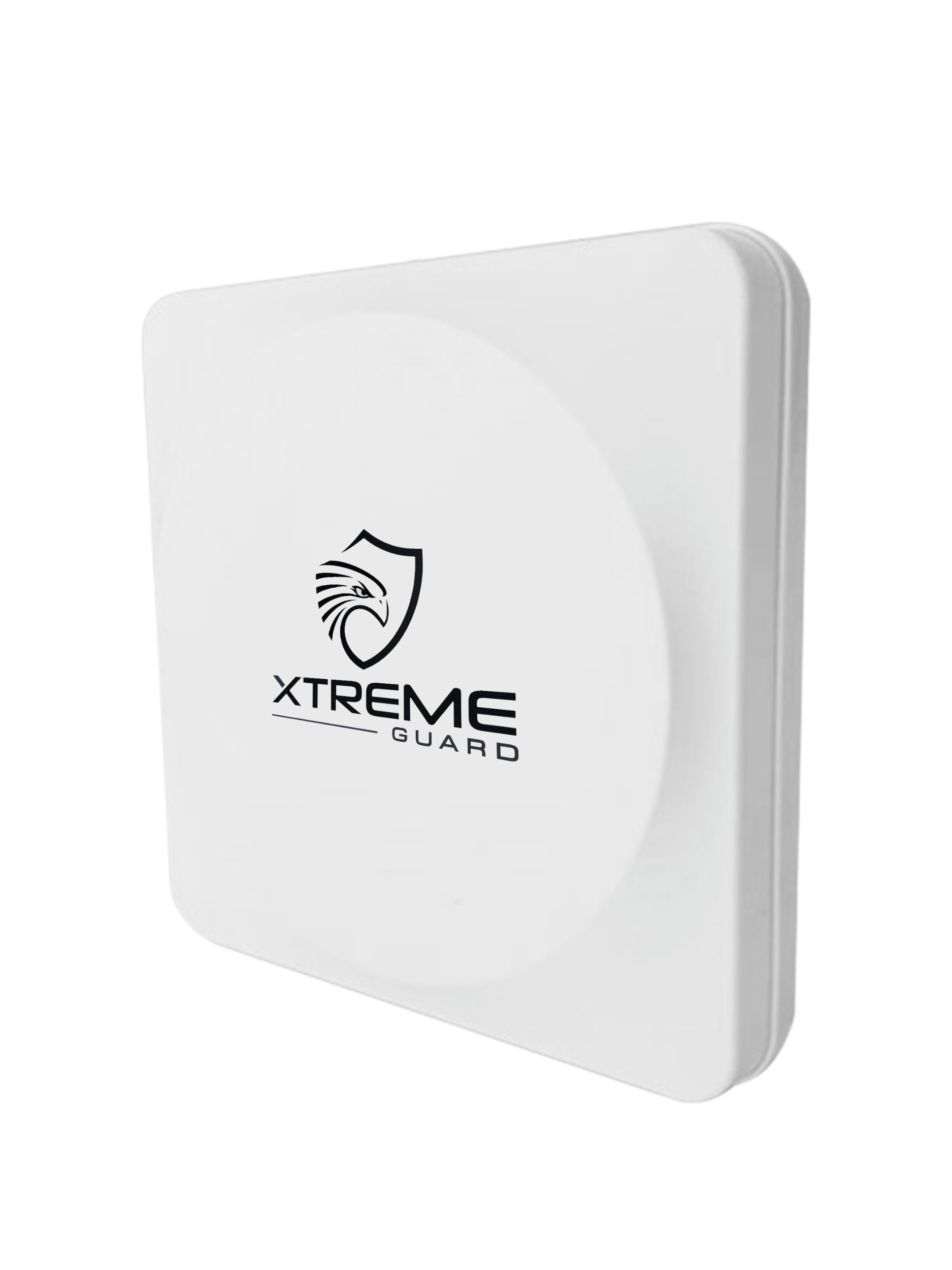

The XR-815 Wiegand UHF Long Range Reader is a next-generation RFID access solution engineered for vehicle and personnel identification in both indoor and outdoor applications. With an extended reading distance of up to 15 meters, it provides superior performance compared to standard RFID readers, making it ideal for parking management, gated communities, industrial zones, and commercial facilities.

Equipped with a built-in 9 dBi antenna and operating at high speed (up to 100 tags per second), the XR-815 ensures reliable, efficient, and simultaneous identification of multiple passive UHF tags using anti-collision technology.

The reader is built with IP66-rated housing, ensuring resistance to rain, dust, and extreme weather, making it suitable for harsh outdoor conditions. With Wiegand 26/34, RS232, and RS485 interfaces, along with optional TCP/IP, WiFi, and GPRS connectivity, it integrates seamlessly into new or existing access control infrastructures.

Added features such as tamper detection enhance system security, while plug-and-play installation simplifies deployment and upgrades. Designed for long-term reliability, the XR-815 combines advanced technology, rugged durability, and versatile integration to deliver a high-performance RFID solution for modern access control systems.
Attribute Value
Model XR-815
Read Range Up to 15 meters (adjustable, tag and environment dependent)
Tag Compatibility Passive UHF Tags, ISO/IEC 18000-6C, EPC Class 1 Gen2
Read Speed Up to 100 tags per second
Antenna Built-in 9 dBi linear polarization
Communication Wiegand 26/34, RS232, RS485 (optional TCP/IP, WiFi, GPRS)
Security Features Built-in tamper detection switch
Durability IP66 waterproof, dustproof, reliable in outdoor environments
Installation Plug-and-play, easy to integrate
Applications Parking management, gated communities, industrial & commercial access
Dimensions 345 × 345 × 75 mm
File Icon XR-815 - Data Sheet File size: 2.28 MB Last updated: 10 Oct 2025 Download
