AM System

XG-AM5011

  • Advanced AM anti-theft system for secure retail environments
  • Built with high-durability ABS plastic and stainless steel base
  • Offers excellent detection range (up to 2.6 meters) with low false alarms
  • Supports connection of multiple antennas for broader coverage
  • Software-controlled tuning with side signal control and phase sync
  • Compatible with various tag types including AM labels and pencil tags
  • Remote configuration via PC browser or mobile app
  • Ideal for retail stores, electronics outlets, and supermarkets

  • Description
  • Specifications
  • Download
  • Videos

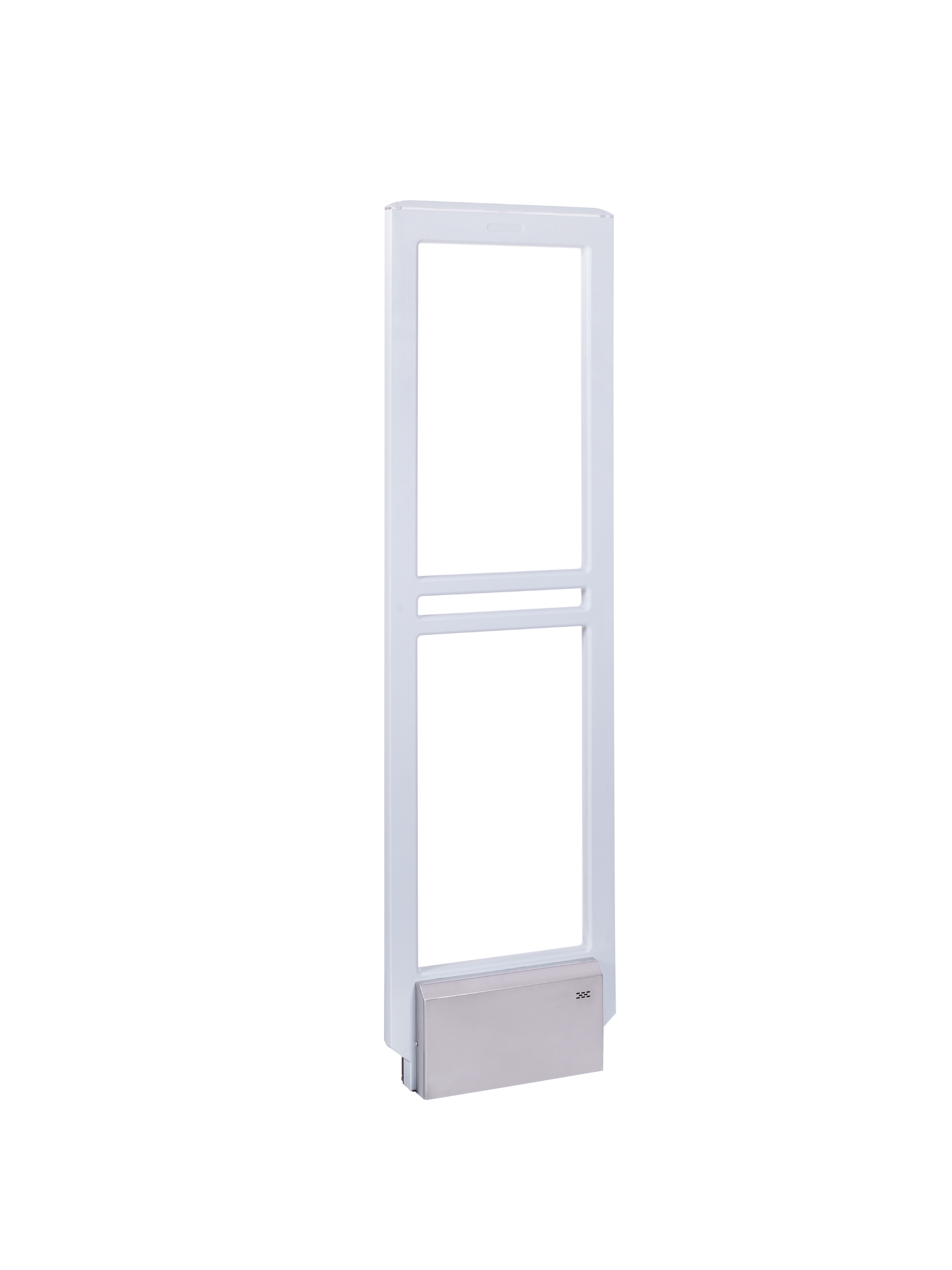

The XG-AM5011 is a robust, plastic-based AM electronic article surveillance system for modern retail stores. It offers high detection sensitivity, modular antenna setup, and remote configuration via software. With durable construction and sleek aesthetics, it’s ideal for loss prevention in fashion, electronics, and grocery stores.
Attribute Value
Model XG-AM5011
Material ABS Plastic + Stainless Steel Base
Frequency 58 KHz
Detection Range 1.8 – 2.6 meters between antennas
Channel Width 3.6 – 5.2 meters (dual setup)
Power Consumption 100W (25W per antenna)
Operating Voltage 110–220V AC
Temperature Range -5°C to +50°C
Antenna Setup Master with up to 2 slave antennas
Configuration Software tuning, phase sync, signal control
Dimensions 1580 × 430 × 130 mm
Weight Net: 26kg / Gross: 29kg
Applications Retail stores, supermarkets, electronics outlets
Data Sheet Last updated: 17 Apr 2025 Download
